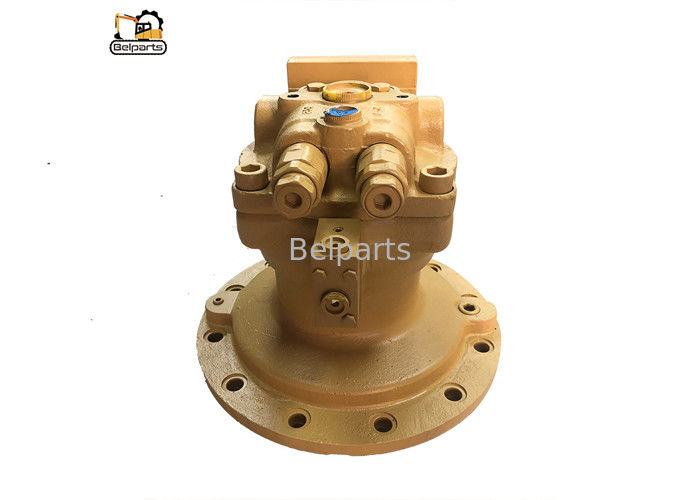

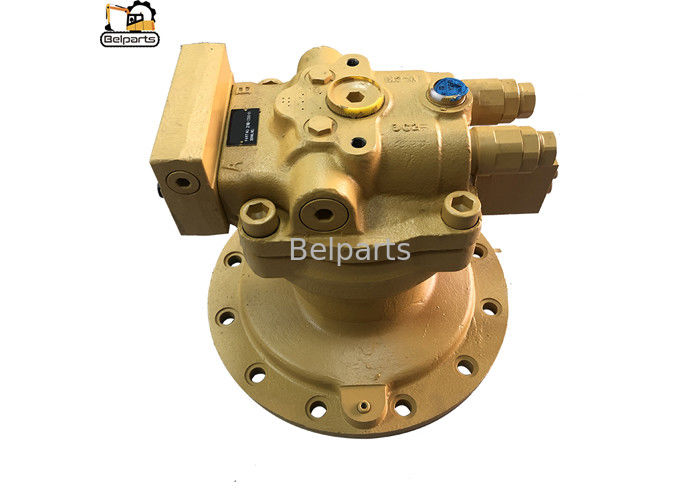

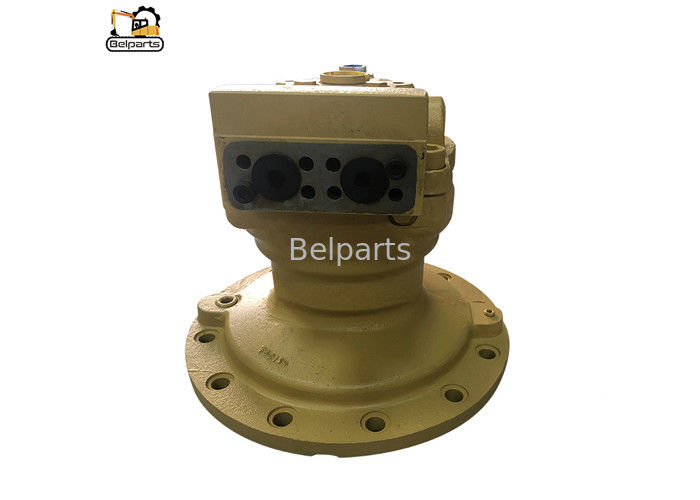

Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xName modelo | R305LC-7 | Marca | Belparts |
---|---|---|---|
Pagamentos | T/T, Paypal, segurança do comércio de Alibaba | Serviços pós-vendas | Em linha |
Circunstância | Novo | Material | Aço |
Cor | Prata | Preço | Negotiable Price |
Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy
List of spare parts
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
* | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
*-2 | 31N6-10150 | REDUCTION GEAR ILL.CHANGE |
1 | |
1 | XKAQ-00002 | CASING ASSY | 1 | |
2 | XKAQ-00005 | SHAFT-DRIVE | 1 | |
3 | XKAQ-00018 | SPACER | 1 | |
5 | XKAQ-00026 | BEARING-ROLLER | 1 | |
6 | XKAQ-00032 | SEAL-OIL | 1 | |
7 | XKAQ-00029 | BEARING-ROLLER | 1 | |
8 | XKAQ-00076 | PLATE-THRUST | 1 | |
9 | XKAQ-00075 | CARRIER-2 | 1 | |
10 | XKAQ-00074 | RING-STOP | 1 | |
11 | XKAQ-00073 | GEAR-RING | 1 | |
12 | XKAQ-00072 | PIN-KNOCK | 4 | |
13 | XKAQ-00014 | GEAR-PINION | 1 | |
14 | XKAQ-00071 | WASHER-THRUST | 6 | |
15 | XKAQ-00023 | GEAR-PLANET 2 | 3 | |
16 | XKAQ-00070 | PIN & BUSHING INCL 23 |
3 | |
17 | XKAQ-00048 | PIN-SPRING | 6 | |
18 | XKAQ-00011 | GEAR-SUN 2 | 1 | |
19 | XKAQ-00015 | CARRIER-1 | 1 | |
20 | XKAQ-00057 | PLATE-SIDE 1 | 3 | |
21 | XKAQ-00019 | PIN 1 | 3 | |
22 | XKAQ-00030 | CAGE-NEEDLE | 3 | |
N23 | @ | FUEL INJECTION PIPE & NOZZLE | 3 | |
24 | XKAQ-00025 | GEAR-PLANET 1 | 3 | |
25 | XKAQ-00044 | WASHER-LOCK | 2 | |
26 | XKAQ-00068 | PLATE-SIDE 3 | 1 | |
27 | XKAQ-00067 | GEAR-SUN 1 | 1 | |
29 | XKAQ-00049 | PLUG-PRESSURE | 1 | |
30 | XKAQ-00066 | PLUG | 2 | |
31 | XKAQ-00065 | BOLT-SOCKET | 2 | |
32 | XKAQ-00035 | PIPE-GAUGE | 1 | |
33 | XKAQ-00034 | BAR-GAUGE | 1 | |
34 | XKAQ-00031 | PLATE-COVER | 1 | |
35 | XKAQ-00064 | BOLT-HEX | 8 | |
36 | XKAQ-00043 | PLATE-LOCK | 1 | |
37 | XKAQ-00042 | BOLT-HEX | 4 | |
38 | XKAQ-00041 | RING-STOP | 3 | |
39 | XKAQ-00040 | PLATE-SIDE 2 | 3 | |
40 | XKAQ-00143 | AIR BREATHER ASSY | 1 | |
40-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
40-2 | HHI22-WP41 | CAP-BREATHER | 1 | |
*-1 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4100 |
1 |
Company Information
Factory
Packing & Delivery
Packaging Details:
1.According to orders, pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed with oil paper and plastic bags inside
6.Using wooden case package.
7.We support the custom-made demand for package
