Name: SK135SRLC-1E SK135SR-1E Hydraulic Bucket Cylinder for Kobelco Excavator Spare Parts YX01V00005F1 Aftermarket High Quality
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SK135SRLC-1E SK135SR-1E
Price: 475.00 USD
Availability: InStock

Para casa > produtos > Assy do cilindro hidráulico >

SK135SRLC-1E SK135SR-1E Hydraulic Bucket Cylinder for Kobelco Excavator Spare Parts YX01V00005F1 Aftermarket High Quality

Lugar de origem:

China

Marca:

Belparts

Certificação:

Número do modelo:

SK135SRLC-1E SK135SR-1E

Contacte-nos

Peça umas citações

SK135SRLC-1E SK135SR-1E Hydraulic Bucket Cylinder for Kobelco Excavator Spare Parts YX01V00005F1 Aftermarket High Quality

Detalhes do produto

Modelo:

SK135SRLC-1E SK135SR-1E

Nome do produto:

YX01V00005F1

Nome da peça:

cilindro de balde hidráulico

Aplicativo:

escavadora

Doença:

Novo

Qualidade:

Mercado de acessórios de alta qualidade

Garantia:

1 ano

Remessa:

DHL FEDEX TNT EMS UPS / Ses / Ar

Padrões de emissão:

Estágio V

Termos de pagamento e envio

Quantidade de ordem mínima

1 peça

Preço

Negociável

Detalhes da embalagem

Embalagem de caixa de madeira

Tempo de entrega

3-7 dias

Termos de pagamento

L/C,D/A,D/P,T/T,TRADE ASSURANCE,WEST UNION,PAYPAL

Habilidade da fonte

100 unidades/meses

PRODUTOS CONEXOS

SK135SRLC-1E SK135SR-1E Hydraulic Bucket Cylinder for Kobelco Excavator Spare Parts YX01V00005F1 Aftermarket High Quality

Obtenha o melhor preço

CX240 Hydraulic Arm Cylinder for CASE Excavator Spare Parts KBV1687 Aftermarket High Quality

Obtenha o melhor preço

314DL CR Hydraulic Arm Cylinder for Excavator Spare Parts 289-7713 2897713 Aftermarket High Quality

Obtenha o melhor preço

EC210CL Hydraulic Arm Cylinder for Excavator Spare Parts 14529773 Aftermarket High Quality

Obtenha o melhor preço

Contacte-nos

+86 19924616345

ron@belparts-china.com

86-020-32384870

Contato agora

Descrição do produto

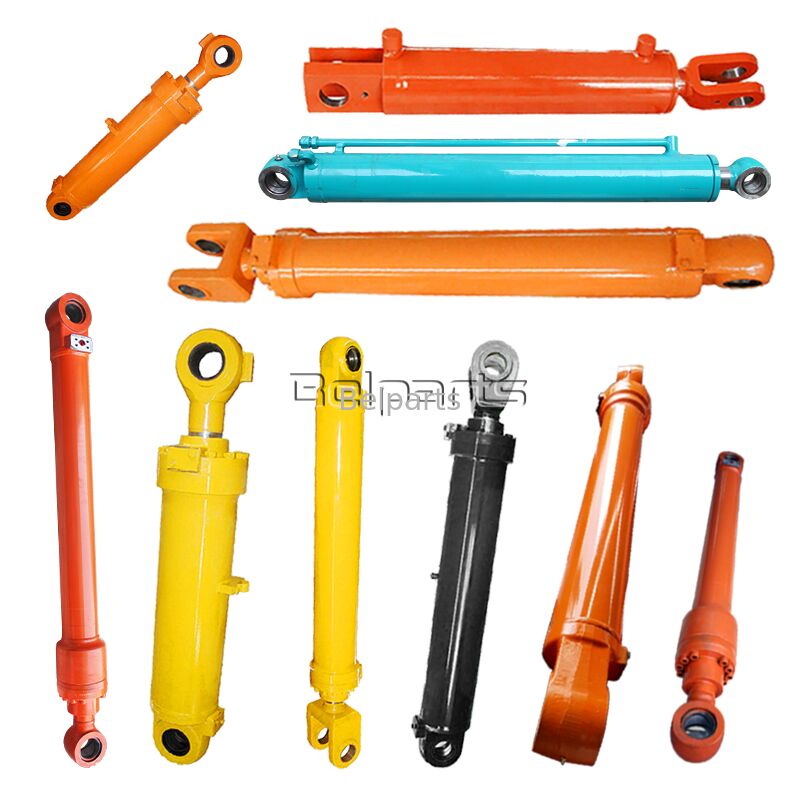

More Branded Accessories are Available

SK135SRLC-1E SK135SR-1E Hydraulic Bucket Cylinder for Kobelco Excavator Spare Parts YX01V00005F1 Aftermarket High Quality 0

Hydraulic Parts	Hydraulic Pump	Final Drive	Travel Reduction
Swing Motor	Swing Reduction	Control Valve	Gear Parts
Slew Bearing	Engine Assembly	Hydraulic Cylinder	ECU

SK135SR-1E/SK135SRLC-1E Hydraulic Bucket Cylinder | Kobelco Spare Parts YX01V00005F1 Premium Aftermarket

1. Product Overview

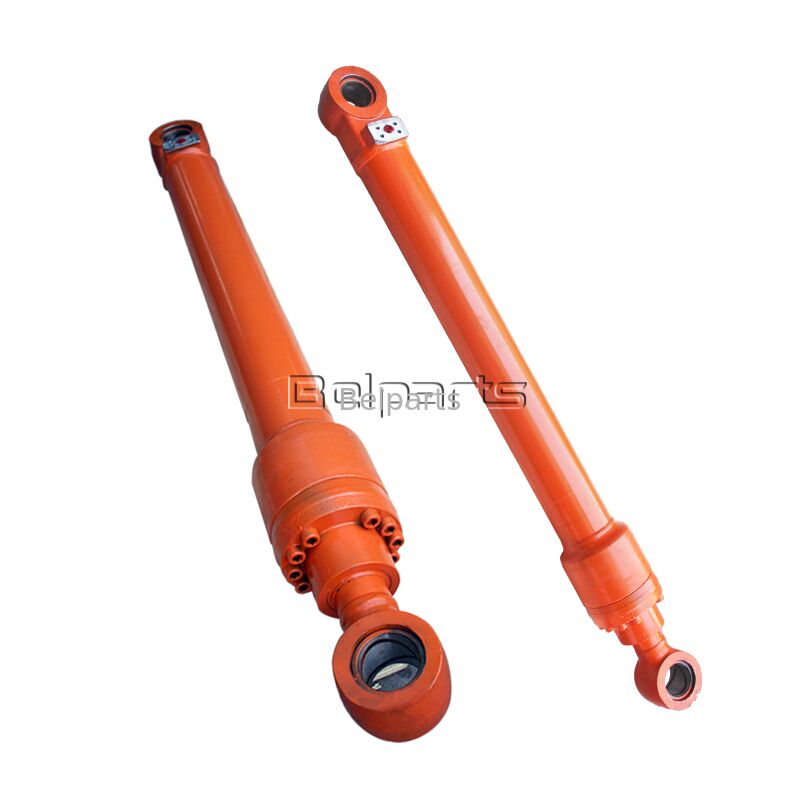

This bucket cylinder is key digging component for Kobelco SK135SR-1E and SK135SRLC-1E excavators. It fits original specs precisely for direct replacement and steady onsite working performance.

Product Parameter Sheet

Parameter	Details
Application	Medium Excavator Hydraulic System
Part Name	Hydraulic Bucket Cylinder
Compatible Model	SK135SR-1E, SK135SRLC-1E
Part Number	YX01V00005F1
Quality	High-Quality Aftermarket
Certification	ISO9001, CE
Warranty	12 Months
MOQ	1 Piece
Delivery Time	3-7 Days Air Express
Shipping	Express, Land, Sea, Railway
Payment	T/T, Trade Assurance, PayPal

2. Technical Specification

#	Part No.	Description	Qty
.	YX01V00005R600	TUBE; REPAIR KIT CONSISTS OF ITEM 2X1, 29X1, (F2 Only)	1
.	YX01V00005R400	TUBE; REPAIR KIT CONSISTS OF ITEM 1X1, 2X1, (F1 Only)	1
.	YX01V00005R300	REPAIR KIT; ALL (ROD+PISTON) CONSISTS OF ITEM 6X1, 7X2, 8X1, 9X2, 10X2	1
.	YX01V00005R200	REPAIR KIT; PISTON SIDE CONSISTS OF ITEM 6X1, 7X2, 8X1, 9X2, 10X2	1
.	YX01V00005R100	REPAIR KIT; ROD SIDE CONSISTS OF ITEM 17X1, 18X1, 19X1, 20X1, 21X1, 22X1	1
.	ZW26X10000	LOCK WASHER; ID 10 x OD 18 x Th 2.5mm, (F2 Only)	2
.	ZS16C10030	CAPSCREW; SCREW M10x1.50x30mm, (F2 Only)	2
.	YW01V00003S025	BRACKET; (F2 Only)	1
.	YX01V00005F7C	CORE-HYD CYLINDER; Return Number	1
.	YX01V00005F7R	REMAN-HYD CYLINDER; SK115SRDZ ASN YY00101 AND YY01....., Reman For New P/N YX01V00005F2	1
.	YX01V00005F2	CYLINDER ASSY.; BUCKET	1
.	YX01V00005F1	BUCKET CYLINDER; ASSY	1
.	YX01V00005R500	PISTON ROD; REPAIR KIT CONSISTS OF ITEM 2X1, 4X1	1
1	----	NOT SOLD SEPARAT; TUBE, CYLINDER, (F1 Only)	1
2	2438U1097S2	BUSHING	2
3	2438U1097S29	SEAL; DUST	4
4	----	NOT SOLD SEPARAT; ROD, PISTON	1
5	YW01V00003S029	PISTON	1
6	YW01V00001S008	O-RING	1
7	YW01V00001S009	BACK-UP RING; RING, BACK UP	2
8	YW01V00003S030	SEAL; PISTON	1
9	YW01V00001S032	RING; WEAR	2
10	YW01V00001S012	RING	2
11	YW01V00001S013	NUT; PISTON	1
12	YN01V00001S014	SCREW; SETSCREW	1
13	YX01V00005S013	RING; CUSHION	1
14	YX01V00005S014	COVER; ROD	1
15	2438U1097S18	BUSHING	1
16	B38K0038E10	CLIP	1
17	ZD12G09000	O-RING,89.40mm ID x 95.60mm OD x 3.10mm; ID 89.40 ± 0.77 x OD 95mm	1
18	YW01V00001S020	RING; BACK UP	1
19	ZD12G09500	O-RING,3.1mm Thk x 94.4mm ID, 90 Duro; O-Ring -- ID 94.40 ± 0.81 x OD 100mm	1
20	YW01V00001S022	SEAL	1
21	2438U897S18	PACKING; ROD	1
22	2438U908S27	SEAL; DUST	1
23	ZS23C14065	BOLT,Hex Socket Head, M14 x 65mm; M14x2.0x65mm	8
24	YW01V00003S024	BRACKET; BAND	1
25	YW01V00003S025	BRACKET; (F1 Only)	2
26	ZS16C10030	CAPSCREW; SCREW M10x1.50x30mm, (F1 Only)	4
27	ZW26X10000	LOCK WASHER; ID 10 x OD 18 x Th 2.5mm, (F1 Only)	4
28	YX01V00005S028	BAND; (F1 Only)	1
29	----	NOT SOLD SEPARAT; TUBE, CYLINDER, (F2 Only)	1

High-strength seamless alloy steel cylinder body. Hardened and chrome-plated rod ensures strong wear resistance. Premium seals work stably at -20℃~+85℃. All items pass strict leak and fatigue tests before delivery.

Engineering Item	Data
Component Type	Hydraulic Bucket Cylinder
OEM No.	YX01V00005F1
Main Material	High-Strength Seamless Alloy Steel
Rod Treatment	Induction Hardening + Chrome Plating
Seal Type	High-Pressure Polyurethane Seal
Working Temp	-20℃ ~ +85℃
Factory Test	Leakage, Fatigue, Dimension Check

3. Product Advantage

Matches original performance with cost-effective price. Single piece order available. 12-month warranty covers non-artificial defects. Fast stock delivery reduces maintenance cost and equipment downtime.

4. Brand Introduction

Founded in 2013, Belparts supplies hydraulic spare parts for mainstream excavator brands. Products exported to 150+ countries with complete global logistics service.

5. FAQ

Q1: Perfect fit for target Kobelco models?

A: Send serial number or old part photos to confirm full compatibility for direct installation.

Q2: Warranty coverage scope?

A: Covers oil leakage, deformation and seal damage from non-human causes, plus free technical support.

Q3: Advantages over regular aftermarket parts?

A: Optimized structure and materials adapt to actual working conditions, more durable and stable.

Q4: Packaging and shipping time?

A: Anti-rust treatment & export wooden box. 3-7 days air freight, 30-45 days sea freight.

Q5: Available payment methods?

A: Safe transactions via T/T, Trade Assurance and PayPal.
