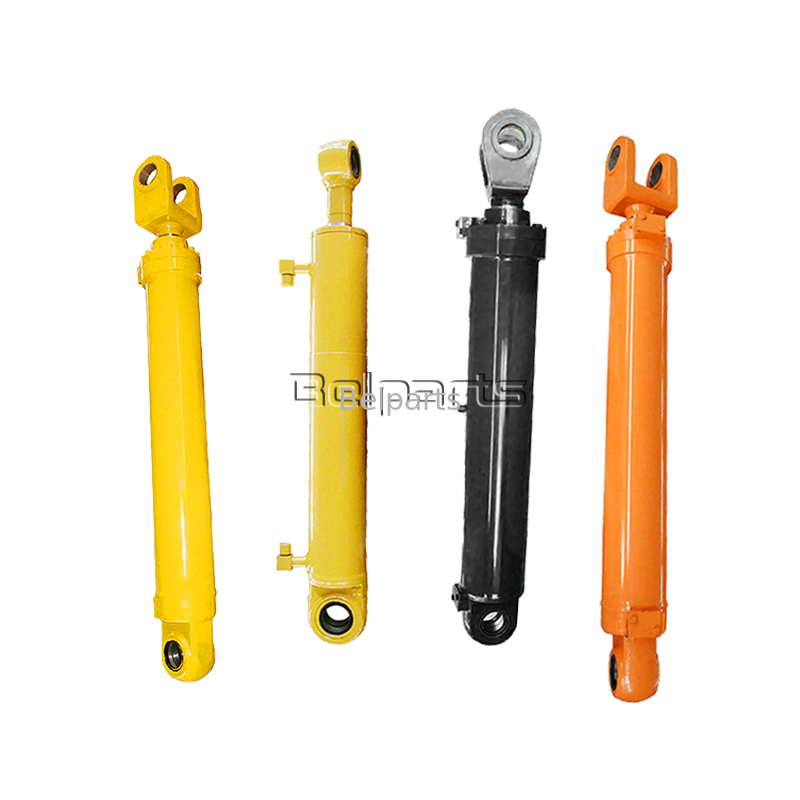

SK135SR-1E / SK135SRLC-1E Hydraulic Boom Cylinder | Kobelco Excavator Spare Parts YY01V00002F1 Premium Aftermarket Grade
1. Product Overview & Equipment Compatibility
YY01V00002F1 hydraulic boom cylinder is a core lifting component for Kobelco SK135SR-1E and SK135SRLC-1E excavators. Produced to full OEM standards, it features identical installation sizes and hydraulic parameters for direct installation without modification. It delivers stable performance for general construction, earthmoving and daily engineering operations.
Quick Product Parameter Sheet
| Parameter |
Product & Logistics Details |
| Application |
Medium excavator hydraulic system, general construction works |
| Part Name |
Hydraulic Boom Cylinder |
| Compatible Model |
Kobelco SK135SR-1E, SK135SRLC-1E |
| Part Number |
YY01V00002F1 |
| Quality Grade |
High-quality aftermarket |
| Certification |
ISO9001, CE certified |
| Warranty |
12-month comprehensive quality warranty |
| Minimum Order Quantity |
1 piece acceptable |
| Delivery Time |
3-7 working days via air express |
| Shipping Options |
Express, land transport, sea freight, railway delivery |
| Payment Method |
T/T, Trade Assurance, PayPal |
2. Technical Specifications & Material Advantages
| # |
Part No. |
Description |
Qty |
| A11 |
ZW26X10000 |
LOCK WASHER; ID 10 x OD 18 x Th 2.5mm |
6 |
| A8 |
ZS18C10040 |
SCREW,Hex, M10 x 40mm; M10x1.50x40mm |
1 |
| B8 |
ZS28C10030 |
SCREW,Hex Socket Head, M10 x 30mm; M10x1.50x30mm |
16 |
| C8 |
ZS18C10045 |
SCREW,Hex, M10 x 45mm; M10x1.50x45mm |
1 |
| A9 |
ZS18C10045 |
SCREW,Hex, M10 x 45mm; M10x1.50x45mm |
5 |
| B9 |
ZW26X10000 |
LOCK WASHER; ID 10 x OD 18 x Th 2.5mm |
2 |
| C9 |
ZS28C10035 |
SCREW,Hex Socket Head, M10 x 35mm; Screw -- M10x1.50x35mm |
4 |
| A10 |
ZS18C12045 |
SCREW,Hex, M12 x 45mm; M12x1.75x45mm |
2 |
| C10 |
ZG91S02000 |
LUBE NIPPLE,1/8" NPT x 1/8" NPT; 1/8" PT -- Straight |
1 |
| B10 |
ZH22Z04000 |
HYD CONNECTOR; 1/4"PTx1/4"PFx37mm Long |
2 |
| B11 |
ZG91S02000 |
LUBE NIPPLE,1/8" NPT x 1/8" NPT; 1/8" PT -- Straight |
2 |
| C11 |
ZD12A01600 |
O-RING; ID 15.60 ± 0.12 x OD 19.16mm |
1 |
| B7 |
ZS18C10045 |
SCREW,Hex, M10 x 45mm; M10x1.50x45mm |
2 |
| A12 |
ZW26X12000 |
LOCK WASHER; ID 12 x OD 21 x Th 3.0mm |
2 |
| C12 |
ZD12P02600 |
O-RING; ID 25.70 ± 0.26 x OD 32mm |
2 |
| B12 |
ZD12A01600 |
O-RING; ID 15.60 ± 0.12 x OD 19.16mm |
4 |
| A13 |
ZD12A01600 |
O-RING; ID 15.60 ± 0.12 x OD 19.16mm |
6 |
| C13 |
ZW26X10000 |
LOCK WASHER; ID 10 x OD 18 x Th 2.5mm |
5 |
| B13 |
ZD12P02600 |
O-RING; ID 25.70 ± 0.26 x OD 32mm |
4 |
| A14 |
ZD12A01800 |
O-RING,1.78mm Thk x 18.77mm ID, Cl 6; ID 18.77 ± 0.12 x OD 22.33mm |
2 |
| . |
YY42H00004F1 |
LINE; HYD LINES, CYLINDER |
1 |
| . |
YY01V00003F2 |
CYLINDER ASSY.; HYD LINES, BOOM |
1 |
| . |
YY42H00003F1 |
LINE; HYD LINES, CYLINDER |
1 |
| B4 |
YY42H01012P1 |
TUBE |
1 |
| C1 |
YY42H01013P1 |
TUBE |
1 |
| A1 |
YY42H01001P1 |
RIGID TUBE; TUBE |
1 |
| B2 |
YY42H01010P1 |
TUBE |
1 |
| A2 |
YY42H01002P1 |
RIGID TUBE; TUBE |
1 |
| C2 |
LP02B01011D2 |
HOSE |
1 |
| C3 |
ZX20H10080 |
HOSE; 800mm Long (31-1/2 in) |
1 |
| B3 |
YY42H01011P1 |
TUBE |
1 |
| A3 |
YY42H01003P1 |
RIGID TUBE; TUBE |
1 |
| B1 |
YY42H01009P1 |
TUBE |
1 |
| C4 |
YW43H01049P1 |
CLAMP |
1 |
| A4 |
YY42H01004P1 |
RIGID TUBE; TUBE |
1 |
| B5 |
ZX20H10074 |
HOSE; 740mm Long (29-1/8 in) |
4 |
| A5 |
ZC26X22011 |
CLAMP; Single Line -- 38x29x65mm Long |
4 |
| C5 |
ZE13X12000 |
CLAMP; Half -- (Incls. Capscrew & Lockwasher) |
2 |
| A6 |
2432T2244 |
CLAMP; Double -- 102x32x12mm (Ø23xØ23mm) |
2 |
| B6 |
2432T2244 |
CLAMP; Double -- 102x32x12mm (Ø23xØ23mm) |
2 |
| C6 |
ZH22Z04000 |
HYD CONNECTOR; 1/4"PTx1/4"PFx37mm Long |
1 |
| C7 |
ZS28C10030 |
SCREW,Hex Socket Head, M10 x 30mm; M10x1.50x30mm |
4 |
| A7 |
2432T2242 |
CLAMP; Double -- 106x38x12mm (Ø23xØ29mm) |
2 |
| 01 |
YY01V00001F1 |
CYLINDER ASSY.; CYLINDER ASSY, BOOM (L.H), Remarks: SEE (C.P.M) |
1 |
| 02 |
YY01V00002F1 |
CYLINDER ASSY.; CYLINDER ASSY, BOOM (R.H), Remarks: SEE (C.P.M) |
1 |
| 03 |
YY01V00003F1 |
CYLINDER ASSY.; CYLINDER ASSY, ARM, Remarks: SEE (C.P.M) |
1 |
The cylinder body is made of high-tensile seamless alloy steel with strong compression and anti-deformation capacity. The piston rod undergoes induction hardening and hard chrome plating to resist wear, corrosion and impact. High-performance sealing parts effectively prevent oil leakage, ensuring stable operation within -20℃ to +85℃. All products pass leakage, fatigue and dimensional tests before delivery.
| Engineering Attribute |
Verified Technical Data |
| Product Type |
Kobelco SK135SR-1E / SK135SRLC-1E Hydraulic Boom Cylinder |
| OEM Reference Number |
YY01V00002F1 |
| Main Manufacturing Material |
High strength seamless alloy steel |
| Surface Treatment of Piston Rod |
Induction hardening + hard chrome plating |
| Sealing Material |
Wear-resistant high pressure polyurethane seal |
| Applicable Working Temperature |
-20℃ ~ +85℃ |
| Factory Inspection Items |
Leakage test, fatigue test, dimension measurement |
3. Competitive Strength of Our Boom Cylinder
This aftermarket cylinder offers OEM-matched performance at a competitive price. Optimized materials and structure adapt well to medium-load working conditions for longer service life. We accept single-piece orders and keep ample stock for fast delivery to reduce equipment downtime. The 12-month warranty covers non-artificial defects, with free replacement parts and professional technical support provided.
4. Brand Strength & Global Supply Service
Established in 2013, Belparts specializes in excavator hydraulic spare parts. We supply reliable aftermarket and OEM-matched components for mainstream brands including Kobelco, Hyundai, Komatsu

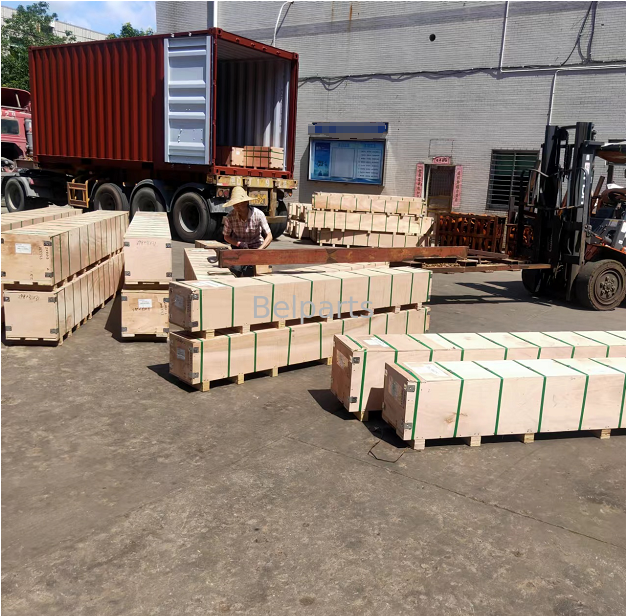

With standardized production and strict quality control, our products enjoy wide recognition across the globe. We export goods to over 150 countries and regions, and provide complete cross-border logistics to meet various shipping requirements.
5. Frequently Asked Questions
Q1: Can this cylinder fit Kobelco SK135SR-1E and SK135SRLC-1E perfectly?
A: This part is manufactured strictly according to OEM specifications for the two models. You may send the machine serial number or photos of the old cylinder, and our technical team will double-check compatibility for seamless direct installation.
Q2: What problems are covered under the 12-month warranty?
A: The warranty covers non-man-made faults such as oil leakage, seal damage, cylinder distortion and insufficient working pressure. Free replacement parts and long-term technical consultation are available.
Q3: What advantages does this product have over common spare parts?
A: Reinforced materials and optimized structure bring better pressure resistance and durability, suitable for various construction scenarios.
Q4: How is the product packaged and how long will delivery take?

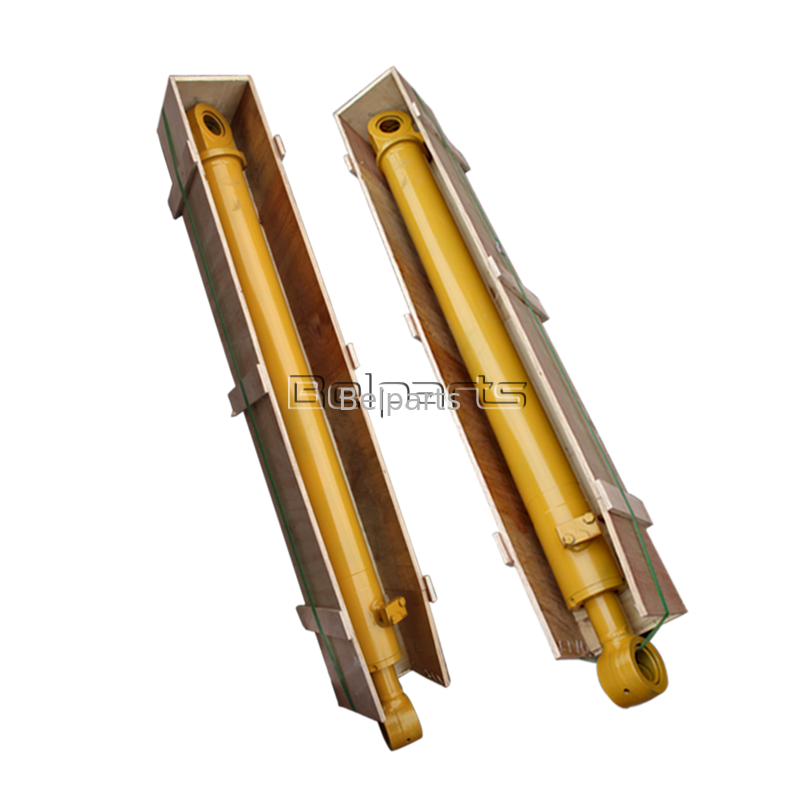

A: All cylinders are coated with anti-rust oil and sealed, then packed in sturdy export wooden cases. Air delivery takes 3 to 7 days, while sea freight takes 30 to 45 days for bulk orders.
Q5: What safe payment methods can customers choose?
A: We support multiple secure cross-border payments including T/T bank transfer, Trade Assurance and PayPal to fully protect transaction safety.
